Steel Conveyor Roller

JUXIN steel carrier rollers are produced using our innovative composite bearing housing to ensure optimum quality, performance, reliability and durability. The benefits of JUXIN steel rollers include belt-friendly components, superior balance, high impact-resistance, and a shell which can be hot vulcanized, rubber lagged or galvanized for special applications.

Leave a request and we will contact you within 10 minutes!

PRODUCT INTRODUCTION



The steel carrier rollers are specifically designed as heavy-duty conveyor rollers intended to operate the most varied bulk handling applications: mines, caves, cement works, coal-fired electric utilities and dock installations. Different configurations are available with shaft diameter from 20 to 40mm and tube diameter from 63 to 219 sharing a robust steel construction and an hermetic sealing system with multiple labyrinth seals. These provide extremely high load capacity and resistance to impact, corrosion and abrasion of bulk materials, pollutants and other aggressive elements during conveyance.



WHERE IS IT USED

Belt conveyor rollers represent a high investment in the overall design of a material handling system. As is known, high-quality of rollers is a key requirement to ensure an efficient and continuous working life of modern conveyors. As a manufacturer specializing in belt conveyor rollers, JUXIN can produce high-quality conveyor rollers that meet international standards such as ISO, UNI, DIN, AFNOR, FEM, BS, JIS, SANS and CEMA. Our range includes steel rollers, rubber disc rollers, rubber-coated rollers, HDPE rollers and UHMWPE Rollers.



PRODUCT DESIGN

The long-life and high-sealing rollers designed and produced by JUXIN are primarily developed to address the current issues in belt conveyor roller manufacturing, including low accuracy, high rotation resistance coefficient, excessive running noise, poor sealing, and inadequate design life. The rollers feature a fully sealed, waterproof, and dustproof structure, with the bearing assembly utilizing high-precision bearing chambers and special high-quality bearings. They offer advantages such as refined structure, low noise, maintenance-free operation, extended service life (over 30,000 hours), and reliable performance. Therefore, they are an excellent choice for advanced belt conveyor systems.

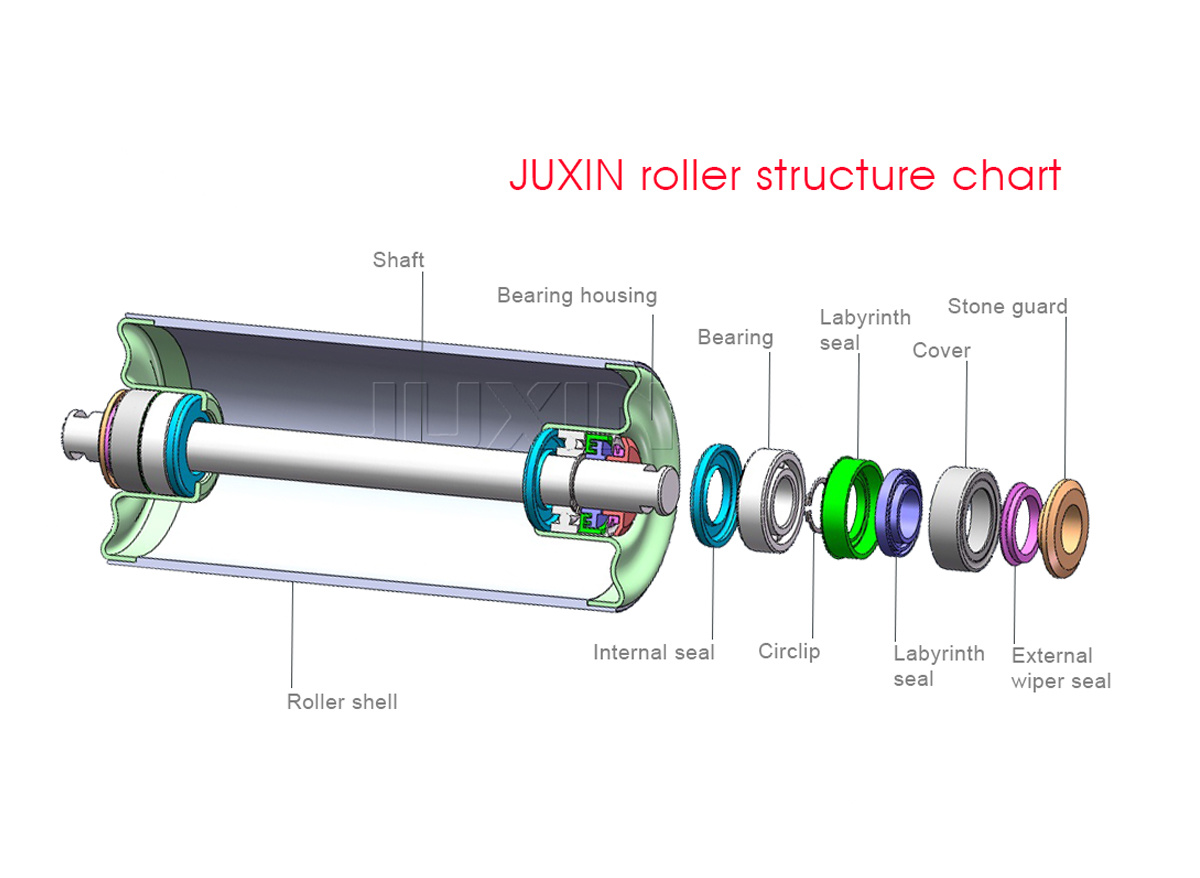

THE CONVEYOR BELT HAS THE FOLLOWING DESIGN

1 Pipe: This is the main part of the roller, typically constructed from steel pipe and coated with paint to enhance its anti-corrosion and wear resistance properties.
2 Bearings: Deep groove precision ball bearings, DIN 62 and 63 series, 6204, 6205, 6305, 6206, 6306, 6308, C3 or C4 clearance.
3 Seal: Labyrinth seal, its purpose is to prevent dust and debris from entering the bearing interior, three-lip type, material ISOPA6 (nylon 6).
4 Bearing housing: This component connects rollers to conveying equipment, available in fixed and adjustable types.
5 Shaft: Cold drawn steel. Raw steel rod grinders process shafts with diameters up to 20, 25, 30, 40 (ISO h6 or g6 tolerances apply to seal parts or entire shafts).
6 Lubrication: The roller assembly using waterproof, dust-proof, long-acting 3 class lithium grease, long-term lubrication.
7 Circlip spring: Made of spring steel, it serves to secure the movement of roller strings.
Collectively, these components form a complete structure that effectively supports conveyor belts and material weight while maintaining normal belt conveyor operation.

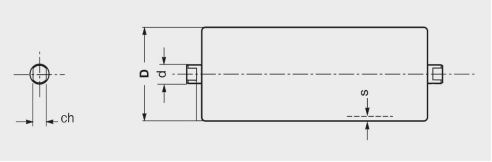

TABLE OF TECHNICAL CHARACTERISTICS

Roller No.

D

inch

s

Bearing housing

d

Bearing

mm

mm

δ

mm

JXCR1

63



3

2.5

20

6204 C3

76

3

3

89



3

102

4

3

108



3.5

114

4.5

3.5

127

5

4

133



4

140



4

JXCR 2

76

3

3

3

25

6205 C3

89



3

102

4

3

108



3.5

114

4.5

3.5

127

5

4

133



4

140

5.5

4

152

6

4

159



4.5

168



4.5

JXCR3

89



3

3.5

25

6305 C3

102

4

3

108



3.5

127

5

4

133



4

140

5.5

4

152

6

4

159



4.5

168



4.5

JXCR4

89



3

3.5

30

6206 C3

102

4

3

108



3.5

127

5

4

133



4

140

5.5

4

152

6

4

159



4.5

165

6.5

4

168



4.5

JXCR5

89



3

4

30

6306 C3

108



3.5

133



4

159



4.5

JXCR6

108



4

5

40

6308 C3

133



4

159



4.5

165

6.5

4

194



6.3



FEATURES AND BENEFITS

1. Utilizing automatic welding robots for welding. Ensuring high stability, efficiency, accurate welding position and angle, as well as consistent welding quality and appearance.

2. Rollers automatic production line. A $2.8M investment in 2024 added a complete set of rollers automatic production line for extreme consistency and fast lead times.

3. Enhanced bearing seal. Revamped and enhanced standard idler seal for water-proof bearing protection.

4. The rollers are made of high-precision special steel pipes with minimal radial runout and good balance.
