PRODUCT INTRODUCTION
The Steel Cord Conveyor Belt is a high-strength, heavy-duty conveyor belt designed for long-distance, high-capacity, and high-speed material transportation. It features steel cord reinforcements embedded within the rubber to provide exceptional tensile strength, low elongation, and excellent impact resistance. The Steel Cord Conveyor Belt is widely used in industries requiring durable, wear-resistant, and energy-efficient conveying solutions.
WHERE IS IT USED
The Steel Cord Conveyor Belt is essential in industries where materials need to be transported over long distances and under extreme conditions, including:
1. Mining & Quarrying – Ideal for transporting coal, ores, and aggregates in underground and open-pit mines.
2. Cement & Construction – Used in cement plants, concrete batching facilities, and construction material handling.
3. Steel & Metallurgy – Handles hot and abrasive materials such as iron ore, slag, and steel products.
4. Power Plants – Transports coal, biomass, and ash efficiently in thermal power stations.
5. Ports & Bulk Handling – Moves grain, fertilizers, and other bulk materials in ports and logistics hubs.
PRODUCT DESIGN
The Steel Cord Conveyor Belt is designed for maximum efficiency, longevity, and reliability:
1.High-Tensile Steel Cords – Provide extraordinary strength and allow for extremely long conveying distances.
2.Low Elongation & High Load Capacity – Ensures minimal stretching, reducing maintenance and improving efficiency.
3.Excellent Impact & Tear Resistance – Protects against sharp and heavy materials, preventing belt damage.
4.Smooth and Even Belt Surface – Ensures stable material transportation and reduced rolling resistance.V 5.High Adhesion Between Steel Cords and Rubber – Prevents delaminating, ensuring long service life.
6.Customizable Widths & Strengths – Available in various belt widths, thicknesses, and tension ratings to meet diverse operational requirements.
THE CONVEYOR BELT HAS THE FOLLOWING DESIGN

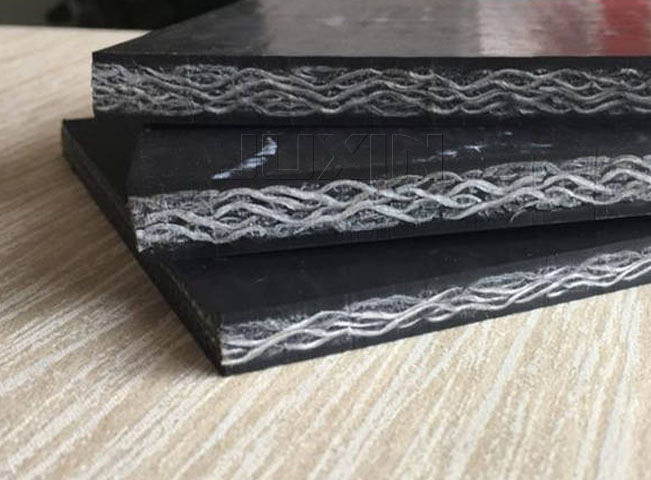

The Steel Cord Conveyor Belt is made with high-quality materials to ensure maximum durability and performance:
1 Top Cover Rubber – Manufactured from high-abrasion-resistant synthetic rubber (NR, SBR, or NBR) to withstand extreme wear.
2 Steel Cord Reinforcement – Consists of zinc-coated, high-strength steel cables that provide exceptional tension resistance.
3 Bottom Cover Rubber – Protects the steel cords from moisture, impact, and wear, increasing belt lifespan.
4 Intermediate Bonding Layer – Ensures strong adhesion between the steel cords and rubber, preventing separation and extending durability.
5 Optional Fire & Heat Resistance – Available with flame-resistant, oil-resistant, or high-temperature-resistant coatings for specific applications.
TABLE OF TECHNICAL CHARACTERISTICS
FEATURES AND BENEFITS
1. Three Decades of Expertise
Established in 1994, we bring 30+ years of specialized experience in bulk material handling equipment manufacturing and system integration, ensuring deep industry insights and technical mastery.
2. Robust China-Based Supply Chain
Leverage our vertically integrated supply network with long-term partnerships with certified Chinese steel mills, foundries, and component suppliers, guaranteeing cost efficiency, quality consistency, and on-time delivery.
3. Financial Strength & Flexible Terms
Backed by solid financial reserves, we offer tailored payment solutions for cyclical procurement (e.g., staggered payments, L/C flexibility) to optimize clients’ cash flow management.
4. Risk-Mitigated Operations
Proactive risk control frameworks minimize contractual, quality, and delivery risks: ISO 9001-certified quality assurance protocols Dual-source procurement strategies for critical components Escrow-backed performance guarantees
5. End-to-End Customization
Deliver turnkey solutions spanning design, fabrication, automation integration, and lifecycle support, tailored to site-specific requirements (e.g., extreme climates, hazardous zones).
6. After-Sales Excellence
24/7 multilingual technical support and a global spare parts network ensure <12-hour response times for critical breakdowns.
INSTALLATION AND COMMISSIONING FROM PROFESSIONALS
JUXIN also provides services for the installation and commissioning of conveyor equipment. Our team of experienced specialists will efficiently set up the operation of the conveyor line at your enterprise in a timely manner. We also offer installation supervision, where our specialist will visit your facility after equipment delivery to oversee the installation and launch process carried out by your personnel.
PRE-SALES：EQUIPMENT SELECTION
Assisting customers in selecting the most suitable belt conveyor for their specific needs and requirements. Additionally, we offer technical advice and guidance to facilitate informed decision-making on bulk material handling equipment. Furthermore, we can provide the following information:
• Customized solutions and design services
• Delivery lead time
• Equipment operation and maintenance
• Environmental and safety measures
• Integration with existing equipment
AFTER-SALES: 24/7 HOTLINE SUPPORT
We have established a hotline (+86 18622502901) to promptly address customer inquiries, feedback, and complaints. Our support is available 24 hours a day, seven days a week. Generally, our engineers will work remotely to resolve your issues.
- We provide training for customers on effective and safe operation and maintenance of the belt conveyor.
- We offer technical support and troubleshooting assistance to address any operational issues or concerns with the belt conveyor.
- We supply spare parts and components as needed, ensuring prompt delivery and compatibility with the specific belt conveyor model.
