Conveyor Stringer Frame
Leave a request and we will contact you within 10 minutes!
PRODUCT INTRODUCTION
The Conveyor Stringer Frame is a fundamental structural component of a belt conveyor system. It serves as the backbone of the conveyor, providing the necessary support for the conveyor belt, idlers, pulleys, and other components. The stringer frame ensures the conveyor operates smoothly, efficiently, and safely, even under heavy loads and demanding conditions. They are commonly used in these industries, such as Mining, Manufacturing, agriculture, etc.
WHERE IS IT USED
Mining: Transporting bulk materials like coal, ore, and aggregates.
Manufacturing: Moving products along assembly lines.
Warehousing and Logistics: Handling packages and goods in distribution centers.
Agriculture: Transporting grains, fertilizers, and other agricultural products.
PRODUCT DESIGN
1、Material Selection:
- Steel: Preferred for heavy-duty applications due to its strength and durability.
- Aluminum: Used for lightweight or portable conveyors because of its corrosion resistance and lower weight.
2、Span Length:
The distance between supports affects the frame's design. Longer spans require stronger beams and additional bracing to prevent sagging.
3、Deflection Limits:
The frame must be designed to minimize deflection, ensuring smooth operation and preventing belt misalignment.
4、Environmental Factors:
Corrosion resistance is important in humid or chemically aggressive environments.
Temperature variations can affect material expansion and contraction.
5、Modularity:
Modular designs allow for easier transportation, assembly, and maintenance.
THE CONVEYOR BELT HAS THE FOLLOWING DESIGN
Components of a Conveyor Stringer Frame
1 Stringer Beams:The primary longitudinal beams that run the length of the conveyor.Typically made of steel (C-channel or I-beam) or aluminum for lightweight applications.Designed to resist bending and deflection under load.
2 Cross Members:Horizontal beams that connect the two stringer beams, providing lateral stability.Help distribute the load evenly across the frame.
3 Legs or Supports:Vertical structures that elevate the stringer frame to the desired height.Can be fixed or adjustable, depending on the application.
4 Bracing:Diagonal or cross-bracing is added to enhance the frame's rigidity and resistance to twisting or bending.Critical for long-span conveyors or those operating in uneven terrain.
5 Mounting Points:1.Areas where idlers, pulleys, and other components are attached to the frame.2.Designed for easy installation and maintenance.
TABLE OF TECHNICAL CHARACTERISTICS
FEATURES AND BENEFITS
1. Three Decades of Expertise
Established in 1994, we bring 30+ years of specialized experience in bulk material handling equipment manufacturing and system integration, ensuring deep industry insights and technical mastery.
2. Robust China-Based Supply Chain
Leverage our vertically integrated supply network with long-term partnerships with certified Chinese steel mills, foundries, and component suppliers, guaranteeing cost efficiency, quality consistency, and on-time delivery.
3. Financial Strength & Flexible Terms
Backed by solid financial reserves, we offer tailored payment solutions for cyclical procurement (e.g., staggered payments, L/C flexibility) to optimize clients’ cash flow management.
4. Risk-Mitigated Operations
Proactive risk control frameworks minimize contractual, quality, and delivery risks: ISO 9001-certified quality assurance protocols Dual-source procurement strategies for critical components Escrow-backed performance guarantees
5. End-to-End Customization
Deliver turnkey solutions spanning design, fabrication, automation integration, and lifecycle support, tailored to site-specific requirements (e.g., extreme climates, hazardous zones).
6. After-Sales Excellence
24/7 multilingual technical support and a global spare parts network ensure <12-hour response times for critical breakdowns.
INSTALLATION AND COMMISSIONING FROM PROFESSIONALS
JUXIN also provides services for the installation and commissioning of conveyor equipment. Our team of experienced specialists will efficiently set up the operation of the conveyor line at your enterprise in a timely manner. We also offer installation supervision, where our specialist will visit your facility after equipment delivery to oversee the installation and launch process carried out by your personnel.
PRE-SALES：EQUIPMENT SELECTION
Assisting customers in selecting the most suitable belt conveyor for their specific needs and requirements. Additionally, we offer technical advice and guidance to facilitate informed decision-making on bulk material handling equipment. Furthermore, we can provide the following information:
• Customized solutions and design services
• Delivery lead time
• Equipment operation and maintenance
• Environmental and safety measures
• Integration with existing equipment
AFTER-SALES: 24/7 HOTLINE SUPPORT
We have established a hotline (+86 18622502901) to promptly address customer inquiries, feedback, and complaints. Our support is available 24 hours a day, seven days a week. Generally, our engineers will work remotely to resolve your issues.
- We provide training for customers on effective and safe operation and maintenance of the belt conveyor.
- We offer technical support and troubleshooting assistance to address any operational issues or concerns with the belt conveyor.
- We supply spare parts and components as needed, ensuring prompt delivery and compatibility with the specific belt conveyor model.
FILL OUT THE QUESTIONNAIRE
Have you filled out the questionnaire?
You need to fill out the questionnaire and send it to our mailbox
Our experts will calculate the mobile belt conveyor and provide the price.
Questionnaire download
If you encounter any problems while filling out the questionnaire, you can call us：

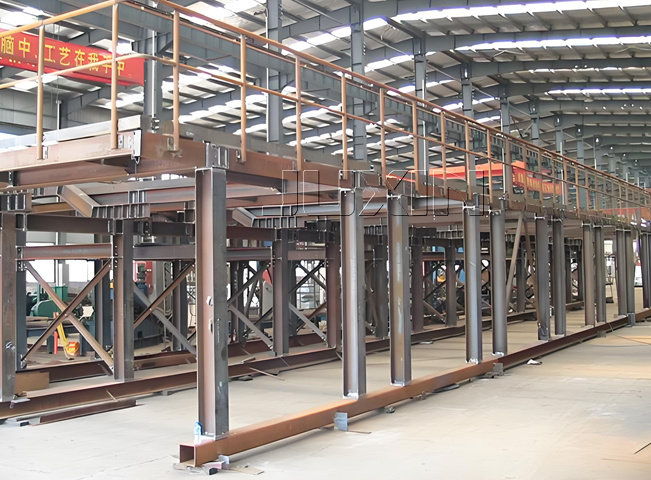

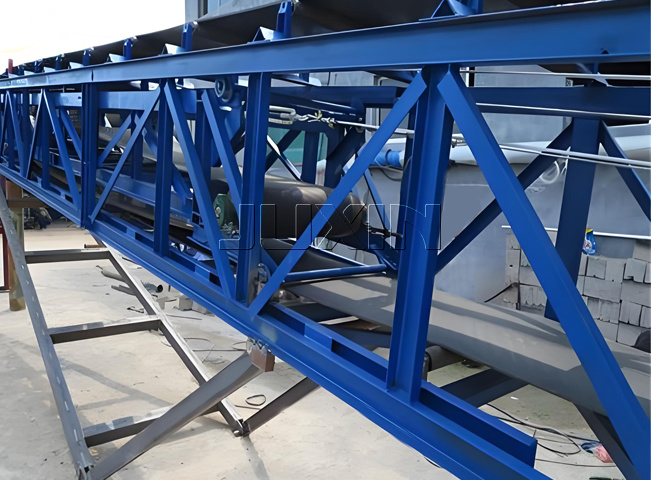

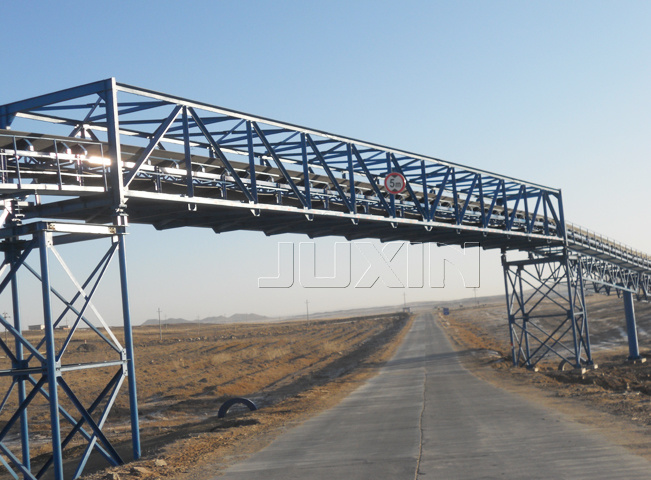

PHOTO GALLERY
